Flatlock panel

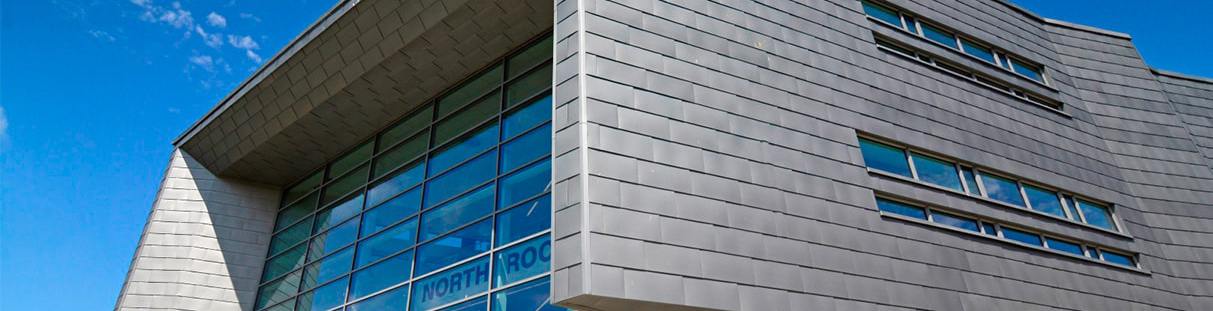

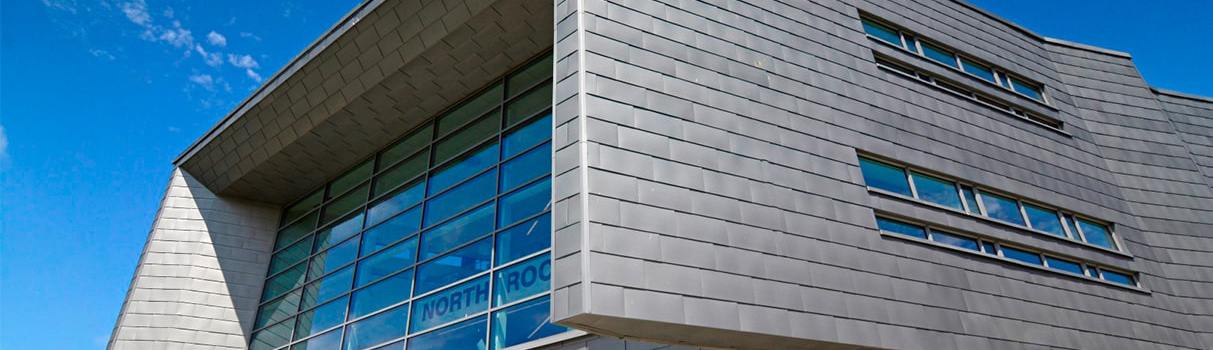

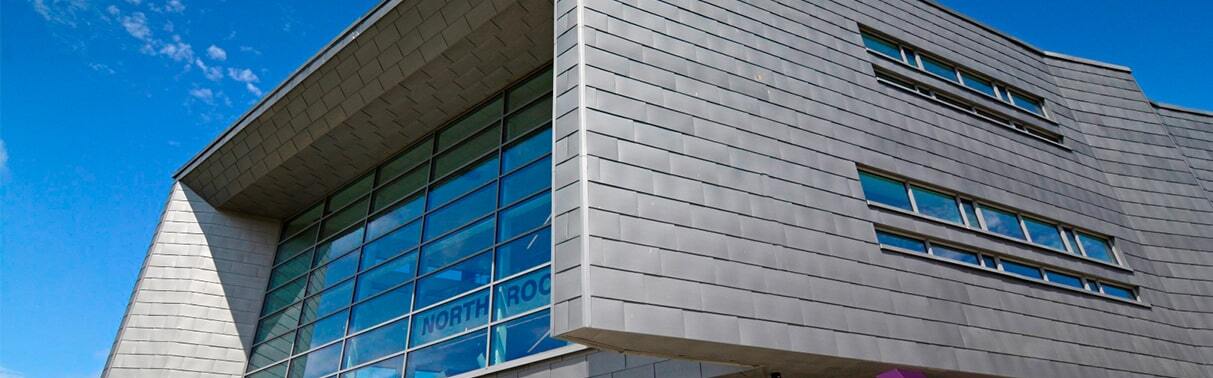

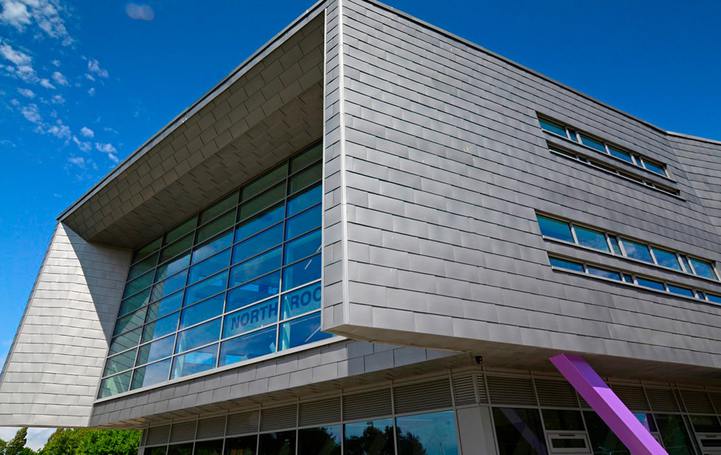

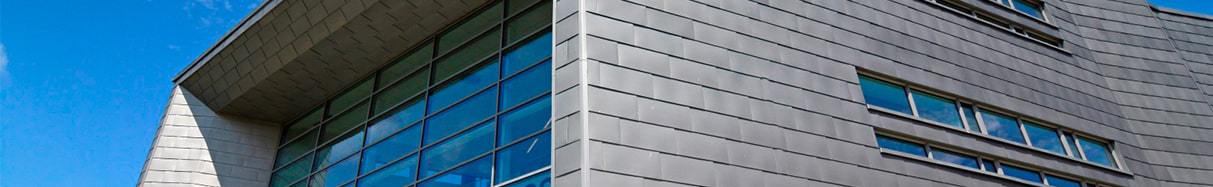

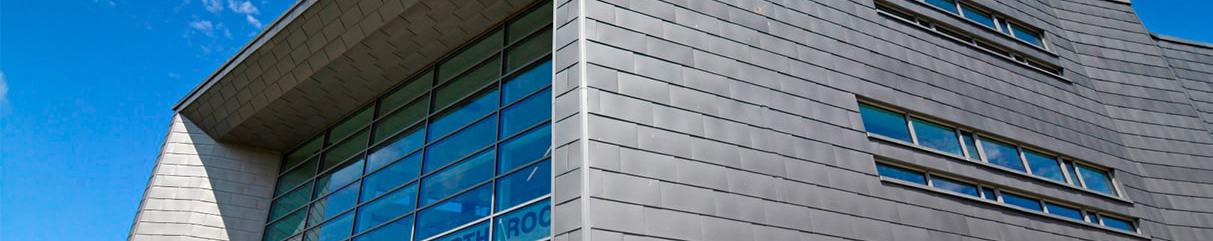

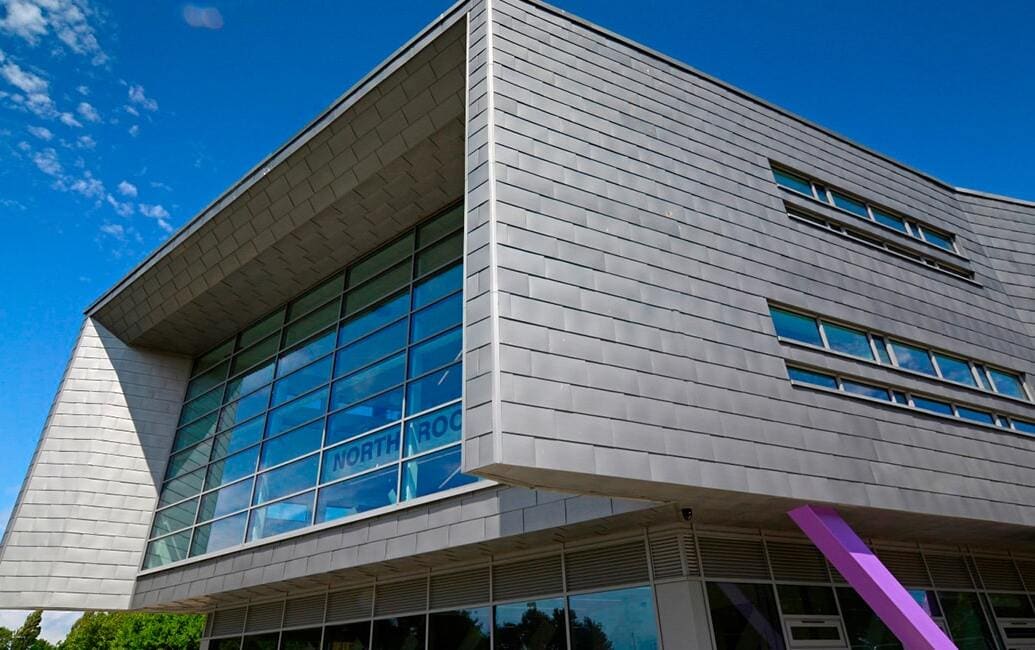

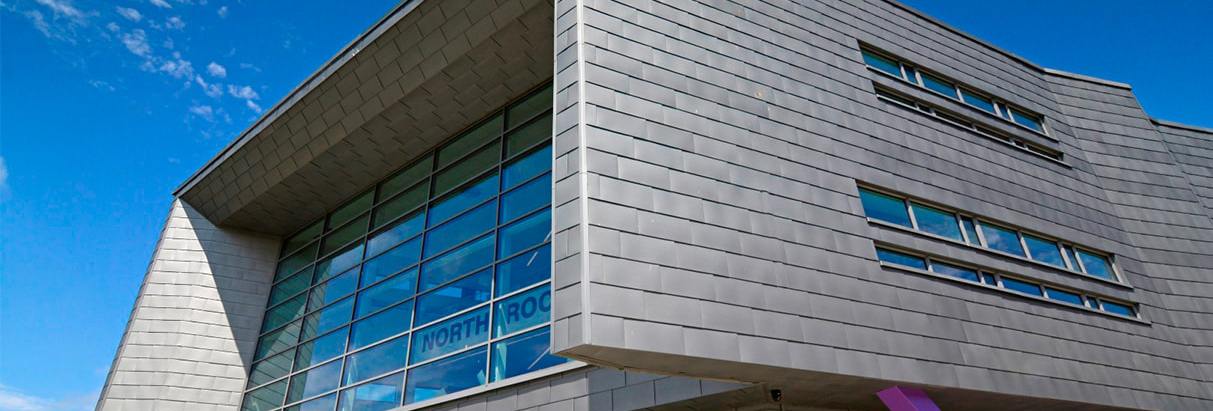

Flat Lock Panel

Flatlock panels can be set up in a straight line or a staggered pattern, either horizontally, vertically, or even at an angle. You can put them on a vertical wall or soffit. These panels come in square, rectangular, or diamond shapes. They fit together on all four sides and are held in place with hidden fasteners and clips. Whether you’re working on a renovation or a new construction, these panels can be installed either horizontally or vertically.

Example
Typical coverage:	36” x 16”
Max coverage:	8’ x 16”
Thickness:	0.80 mm, 1.0 mm
Coverage:	4 sqft (Typical)
On center:	16”

The rectangular shape is the most common. Size and material thickness are mainly standardized, but can be customized per project. The panels are attached with concealed sliding clips, that can be made by the sheet metal worker himself. The dimensions of the eaves profiles, attachment profiles etc. will depend on the on-site dimensions.

The system is easy to install. Even buildings with a complicated geometry such as convex and concave facades can be covered with these panels by using small panels. For larger surfaces areas the large panels are suitable. The Flatlock Panel can be installed vertically, horizontally or diagonally, all depending on the creativity of the designers.

Benfits

Installation Options:

Can be installed aligned or staggered, horizontally, vertically, or at angles, offering flexibility to suit various design needs.
Suitable for both vertical walls and soffits, providing versatility in application across different architectural elements.

Diverse Shapes and Sizes:

Available in square, rectangular, or diamond shapes, catering to different aesthetic preferences and design requirements.
Customizable dimensions allow adaptation to project-specific needs, ensuring a tailored solution for each application.

Concealed Fastening System:

Panels interlock on all four sides with concealed fasteners and clips, ensuring a seamless appearance while maintaining structural integrity.
Secure attachment with concealed sliding clips provides a clean, streamlined finish without visible fixings, enhancing the overall aesthetic appeal.

Ease of Installation:

Simple installation process, suitable for various building geometries, including convex and concave facades.
Sequential installation from the bottom up facilitates efficient assembly, while the option to use small or large panels accommodates different surface areas and complexities.

Durable and Reliable Construction:

Utilizes durable materials such as stainless steel, zinc, or galvanized steel cleats, ensuring long-term stability and resistance to environmental factors.
The range of components, including flashing details, offers comprehensive coverage for enhanced weatherproofing and structural durability.

Flatlock Panel Wall Abutment Right
