Interlocking Panel

The setup includes shaped zinc sheets with a joint and different width options. The distinctive feature of this panel is a tongue-and-groove system with hidden fasteners with hidden fasteners that fit together like puzzle pieces.

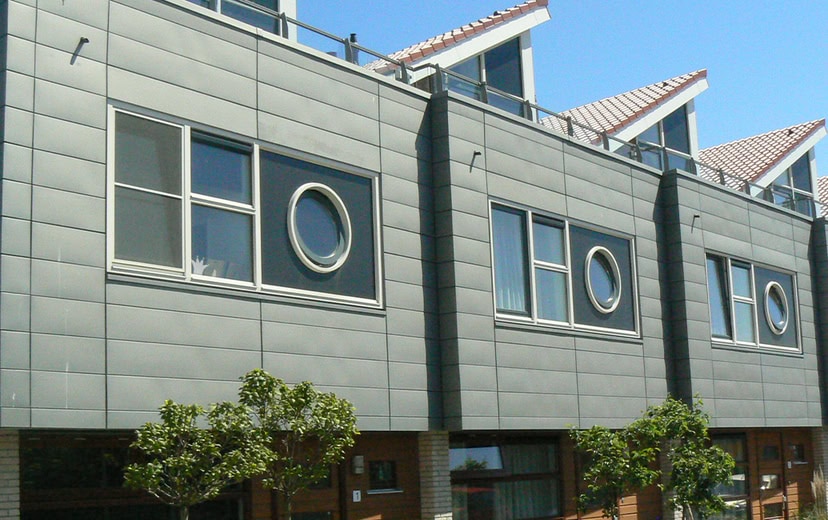

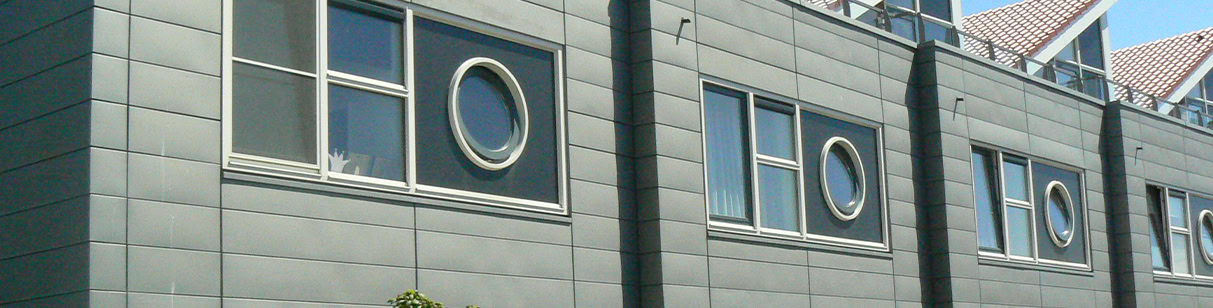

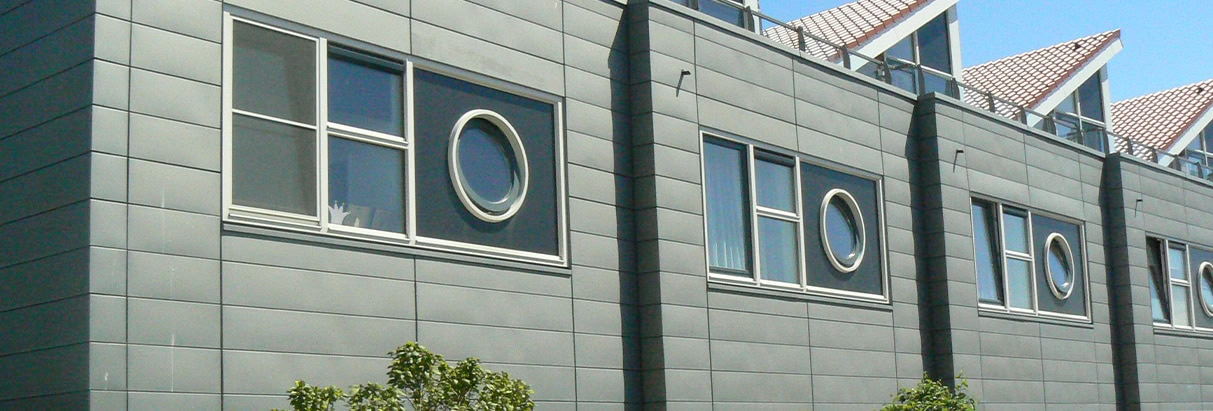

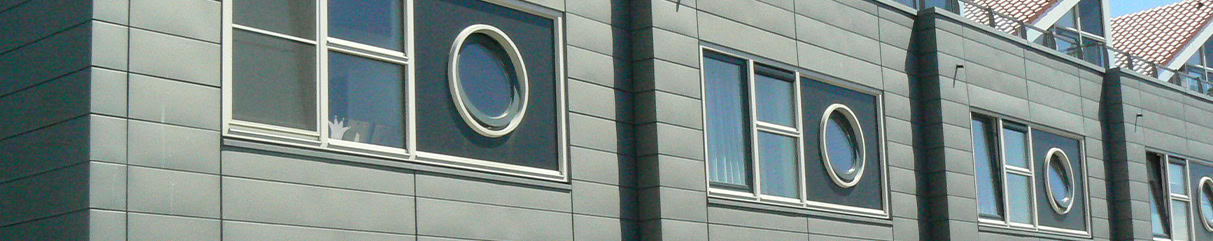

You can attach the interlocking panels up and down, side to side, or in combination, making them perfect for facade cladding. This method allows architects to freely bring their ideas to life for most building shapes.

The unique feature of the panels is that you can adjust the height of the design on the front, ranging from 6” to 13”, and also change the gap between joints.

Example
Max length:

20’ – 0” Horizontal
12’ – 0” Vertical

Thickness:

1.0 mm

Coverage:

C.C. x LF

On center

8″ – 12″”

Reveal:

¼” , ½” , ¾”
1″ – 4

INTERLOCKING PANEL

INTERLOCKING PANEL HORIZONTAL

Interlocking Panel Horizontal Wall Panel Types

Interlocking Panel Horizontal Wall Abutment Right

Interlocking Panel Horizontal Wall Abutment Left

Interlocking Panel Horizontal Vertical Section

Interlocking Panel Horizontal Soffit

Interlocking Panel Horizontal Sill Flashing Window

Interlocking Panel Horizontal Outer Corner Miter Joint

Interlocking Panel Horizontal Outer Corner Miter Joint Isometric

Interlocking Panel Horizontal Joint Section

Interlocking Panel Horizontal Joint Section Isometric

Interlocking Panel Horizontal Jamb Flashing Window Right

Interlocking Panel Horizontal Jamb Flashing Window Left

Interlocking Panel Horizontal Inner Corner

Interlocking Panel Horizontal Inner Corner Isometric

Interlocking Panel Horizontal Inner Corner Alternative

Interlocking Panel Horizontal Inner Corner Alternative Isometric

Interlocking Panel Horizontal Horizontal Section

Interlocking Panel Horizontal Head Flashing Window

Interlocking Panel Horizontal Head Capping

Interlocking Panel Horizontal Folding

Interlocking Panel Horizontal Flashing Joint Section Isometric

Interlocking Panel Horizontal Eaves Flashing Wall

Interlocking Panel Horizontal Clip

Interlocking Panel Horizontal Clip Isometric

Interlocking Panel Horizontal Clip Example

Interlocking Panel Horizontal Application

INTERLOCKING PANEL VERTICAL

Interlocking Panel Vertical Wall Panel Types

Interlocking Panel Vertical Wall Abutment Right

Interlocking Panel Vertical Wall Abutment Left

Interlocking Panel Vertical Vertical Section

Interlocking Panel Vertical Sill Flashing Window

Interlocking Panel Vertical Parapet Section

Interlocking Panel Vertical Outer Corner

Interlocking Panel Vertical Joint Section

Interlocking Panel Vertical Jamb Flashing Window Right

Interlocking Panel Vertical Jamb Flashing Window Left

Interlocking Panel Vertical Inner Corner

Interlocking Panel Vertical Horizontal Section

Interlocking Panel Vertical Head Flashing Window

Interlocking Panel Vertical Head Capping

Interlocking Panel Vertical Eaves Flashing Wall

Interlocking Panel Vertical Clip

Interlocking Panel Vertical Clip Isometric

Interlocking Panel Vertical Clip Example

Interlocking Panel Vertical Clip Application

Benfits

Versatile Design Options: The interlocking system offers architects and designers the freedom to explore various design concepts for facade cladding. Whether it’s vertical, horizontal, or a combination of both, the panels seamlessly fit together, enabling the realization of diverse architectural visions.

Customizable Height and Joint Gaps: With the ability to adjust the height of the design on the front and alter the gap between joints, this system provides flexibility to cater to specific aesthetic preferences and building requirements. It allows for finer control over the facade’s appearance, ensuring it aligns perfectly with the desired look and feel.

Ease of Installation: The interlocking panels, coupled with hidden fasteners, facilitate a straightforward installation process. This not only saves time but also reduces labor costs associated with cladding installation. Architects and fabricators can appreciate the efficiency of the system, streamlining their workflow and project timelines.

Rainscreen Compatibility: Designed to be cladded with a rainscreen system, these interlocking panels offer enhanced protection against moisture infiltration. Whether used in new construction or renovation projects, the system contributes to the durability and longevity of the building envelope, minimizing the risk of water damage and associated maintenance expenses.

Low Maintenance and Durability: The system boasts low maintenance requirements, thanks to its durable materials and design. Its longevity ensures that buildings maintain their aesthetic appeal over time, reducing the need for frequent upkeep and replacement. Real estate owners benefit from a cost-effective solution that maintains the modern aesthetic of their properties while minimizing ongoing maintenance expenses.
